Product Description

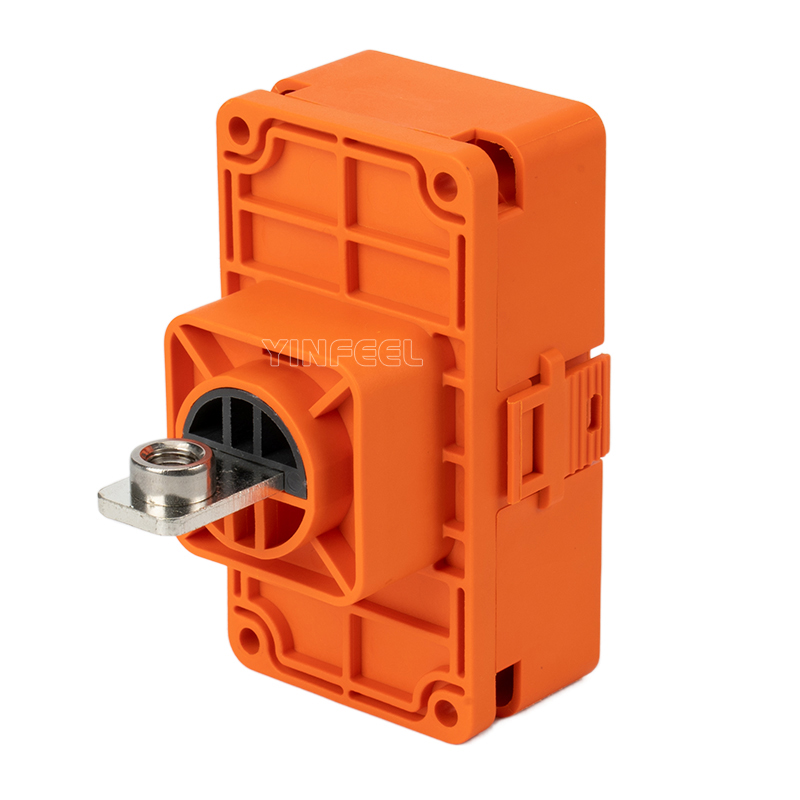

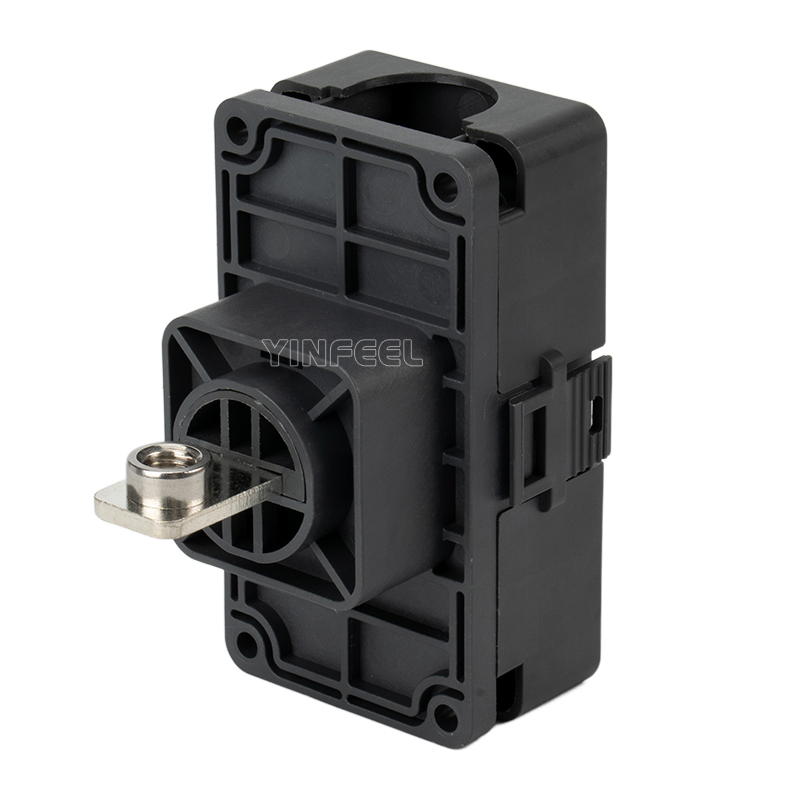

IF-FM8-5094-78-200A-C Through-wall terminals are widely used in applications requiring through-wall solutions: power supplies, filters, electrical control cabinets, and other electronic devices. They have good insulation performance and a high level of protection. Users only need to connect externally, eliminating many unnecessary wiring steps.
| Type: | Square shaped wall-through type terminal |
| Model: | IF-FM8-5094-78-200A-C |
| Material: | PBT/T2 Copper |
| Current rating: | 200A |
| Voltage rating: | 1500V DC Max. |
| Dielectric strength: | 3000V |
| Color: | orange/black |
