Product Description

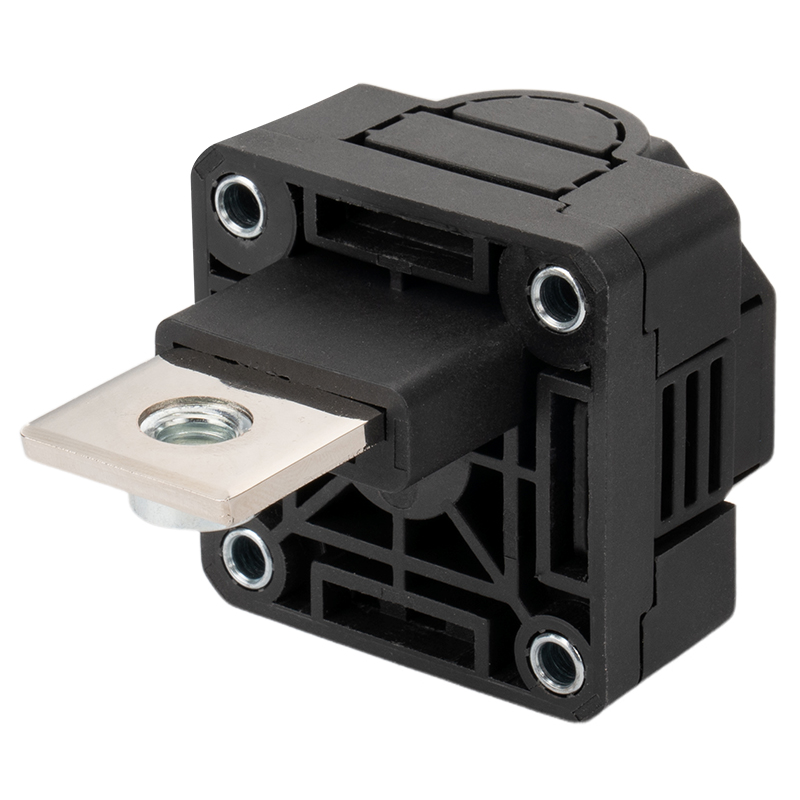

IF-FM8SI-ZT-50-3M Through-wall terminals are widely used in applications requiring through-wall solutions: power supplies, filters, electrical control cabinets, and other electronic devices. They have good insulation performance and a high level of protection. Users only need to connect externally, eliminating many unnecessary wiring steps.
| Type: | Square shaped wall-through type terminal |
| Model: | IF-FM8SI-ZT-50-3M |
| Material: | PBT/T2 Copper |
| Current rating: | 300A |
| Voltage rating: | 1500V DC |
| Insulation resistance: | >5GΩ |
| Flame retardant rating: | UL94V-0 |
| Power frequency withstand voltage: | 5000V DC,1min |
| Wiring method: | Four sides output |
| Color: | orange/black |
