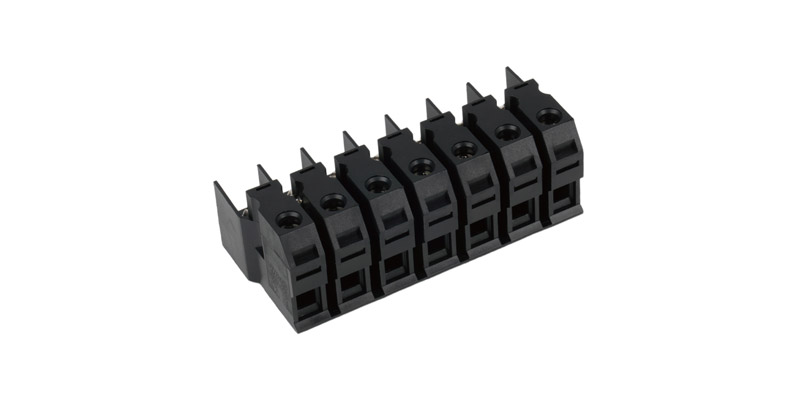

What Should You Know About Choosing and Using Bar-Type Screw Fastening Terminal Blocks for Electrical Projects?

Bar-Type Screw Fastening Terminal Blocks are common in electrical setups, from home energy storage to industrial equipment. But many people wonder: how do I pick the right one? And what mistakes should I avoid when using it? This article answers these practical questions to help you use this component safely and effectively.


Which Electrical Scenarios Work Best with Bar-Type Screw Fastening Terminal Blocks?

Not all terminal blocks fit every project. Bar-Type Screw Fastening Terminal Blocks excel in scenarios where stable, low-maintenance connections are needed—especially in new energy fields like home energy storage and photovoltaic systems. For example:

Residential energy storage cabinets: They connect battery modules and inverters, handling steady currents without frequent disassembly.

Photovoltaic (PV) inverters: They link PV panel outputs to the inverter, withstanding mild temperature changes in outdoor or semi-outdoor setups.

Small industrial electrical boxes: They organize wires for control systems, making wiring neat and easy to inspect later.

They're less ideal for high-vibration environments like heavy machinery since loose screws could disrupt connections—but for most static or low-movement electrical work, they're a reliable choice.

What Are the Key Steps to Install Bar-Type Screw Fastening Terminal Blocks Correctly?

Installation errors often lead to poor contact or overheating. Follow these safety and efficiency guidelines:

Control screw torque: Don't overtighten—this can damage the terminal block's plastic housing or the wire's insulation. Use a torque wrench as basic electrical safety practices recommend, matching the manufacturer's recommended torque (usually 0.5–2 N·m depending on size).

Prepare wires properly: Strip wire insulation to the right length, typically 6–10 mm. Too little insulation means exposed wires risk short circuits; too much means the wire won't connect firmly.

Check polarity if needed: For DC systems like energy storage batteries, align positive/negative wires with the terminal block's markings to avoid reverse current damage.


How to Match Bar-Type Screw Fastening Terminal Blocks to Your Current Needs?

Overloading is a major risk. To choose the right Bar-Type Screw Fastening Terminal Block for your needs, focus on three core factors:

Look at rated current: The terminal block's rated current—e.g., 10A, 20A, 30A—must be higher than the maximum current your circuit carries. For example, a residential energy storage circuit with 15A max current needs a terminal block rated for at least 15A.

Consider wire gauge: Match the terminal block's wire range to your wire size. A terminal block designed for 16–24 AWG wires won't hold 12 AWG wires securely, leading to loose connections.

Avoid "one-size-fits-all": Don't use a high-current terminal block for small circuits (it's unnecessary) or a low-current one for high-demand setups (it will overheat).


How to Maintain These Terminal Blocks to Extend Their Life?

Regular maintenance keeps them working well and ensures long-term reliability:

Inspect every 6–12 months: Check for loose screws (tighten gently if needed) and signs of damage like discolored plastic—which means overheating.

Clean carefully: Wipe dust with a dry cloth. Avoid water or harsh cleaners; they can corrode metal parts or damage insulation.

Replace when worn: If the screw no longer holds wires tightly, or the plastic housing cracks, replace the terminal block immediately. Damaged units can't guarantee safe connections.


Conclusion

Choosing and using a Bar-Type Screw Fastening Terminal Block doesn't have to be complicated—focus on matching scenarios, correct installation, current compatibility, and regular maintenance. These steps ensure your electrical projects stay safe and efficient.
